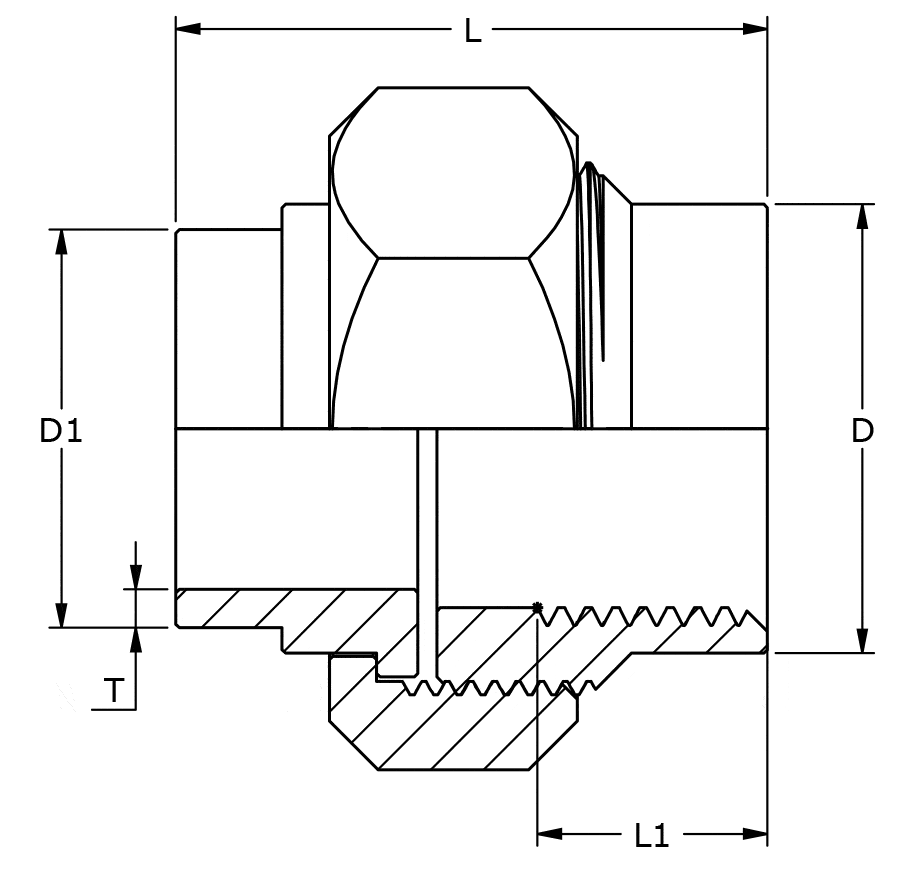

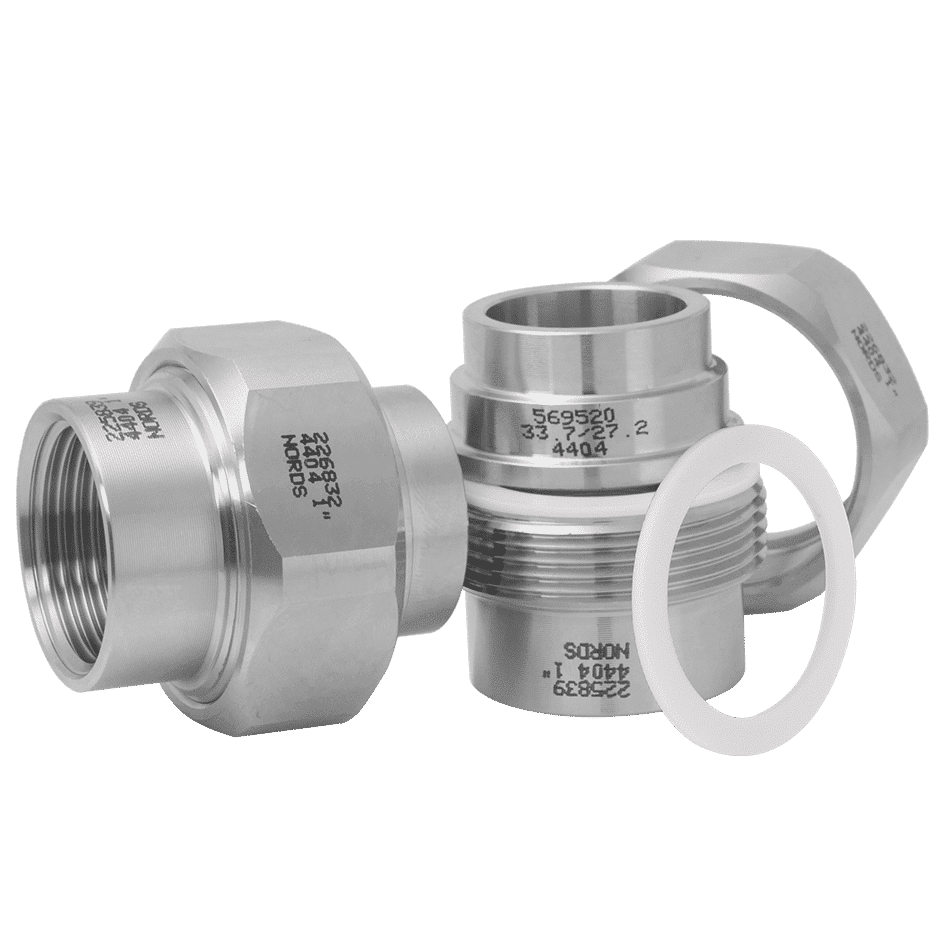

LR-131 I/S Unions Inside threads/Weld Flat gasket PTFE
Inside parallel threads acc. to ISO 228-1 G
CNC-machined from bar
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades such as EN 1.4307, EN 1.4432, EN 1.4462 (Duplex 2205), 1.4539 (904L) and EN 1.4547 (S31254/SMO) upon request
NPT-threads upon request
| DN | Dim. | D1 mm |
L mm |
L1 ISO 228/1 mm |
D mm |
T mm |
Width across flats mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
| 8 | 1/4” | 14 | 30 | 12 | 17 | 2 | 27 | 10 | 0,07 | 11-3171-10 |
| 10 | 3/8” | 18 | 36 | 14 | 20,5 | 2 | 30 | 10 | 0,09 | 11-3171-15 |
| 15 | 1/2” | 21,3 | 39 | 15 | 24,5 | 2,7 | 36 | 10 | 0,13 | 11-3171-20 |
| 20 | 3/4” | 26,9 | 46 | 17 | 31 | 2 | 41,8 | 10 | 0,19 | 11-3171-25 |
| 25 | 1” | 33,7 | 50 | 20 | 38 | 3,3 | 50 | 10 | 0,30 | 11-3171-30 |
| 32 | 1 1/4” | 42,4 | 55 | 22 | 47 | 3,2 | 60 | 6,4 | 0,44 | 11-3171-35 |
| 40 | 1 1/2” | 48,3 | 61 | 23 | 54 | 2,7 | 67 | 6,4 | 0,55 | 11-3171-40 |
| 50 | 2” | 60,3 | 69 | 27 | 66,5 | 2,7 | 85,5 | 6,4 | 0,97 | 11-3171-45 |
