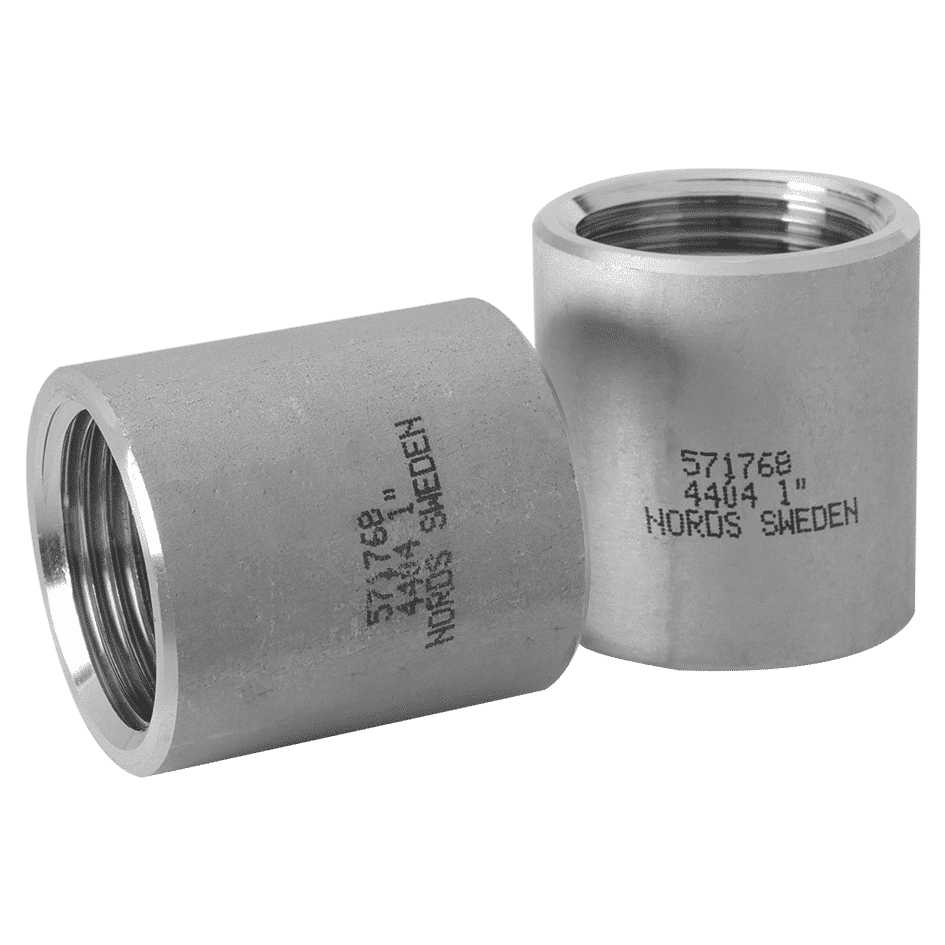

R-201 Sockets
Inside parallel threads acc. to ISO 228-1 G
CNC-machined from seamless tubes /alt. bar
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades such as EN 1.4307, EN 1.4432, EN 1.4571, EN 1.4462 (Duplex 2205), 1.4539 (904L) and EN 1.4547 (S31254/SMO) upon request
Also available with NPT-threads as stock standard

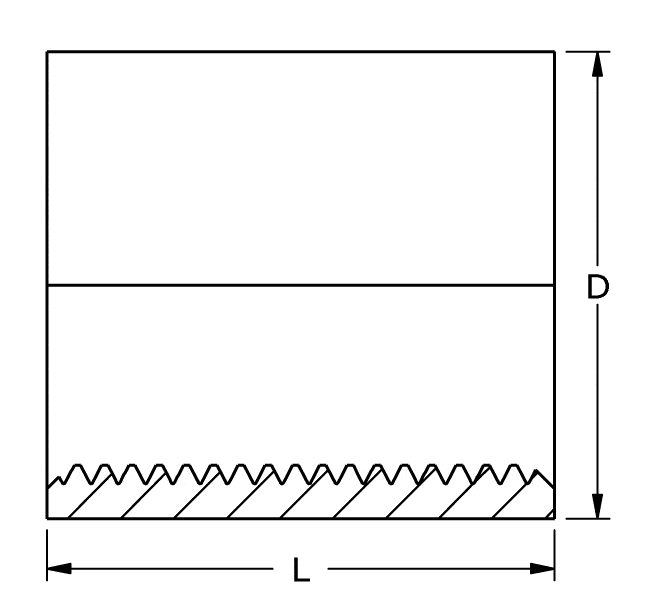

| DN | Dim. | L ISO 228/1 mm |
D mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
| 6 | 1/8” | 17 | 14 | 10 | 0,02 | 11-0201-01 |
| 8 | 1/4” | 25 | 18,5 | 10 | 0,03 | 11-0201-02 |
| 10 | 3/8” | 26 | 21,5 | 10 | 0,03 | 11-0201-03 |
| 15 | 1/2” | 34 | 26,5 | 10 | 0,07 | 11-0201-04 |
| 20 | 3/4” | 36 | 31,8 | 10 | 0,09 | 11-0201-05 |
| 25 | 1” | 43 | 39,5 | 10 | 0,14 | 11-0201-06 |
| 32 | 1 1/4” | 48 | 48,3 | 6,4 | 0,21 | 11-0201-07 |
| 40 | 1 1/2” | 48 | 54,5 | 6,4 | 0,29 | 11-0201-08 |
| 50 | 2” | 56 | 66,3 | 6,4 | 0,40 | 11-0201-09 |
| 65 | 2 1/2” | 65 | 82 | 4 | 0,68 | 11-0201-10 |
| 80 | 3” | 71 | 95 | 4 | 0,97 | 11-0201-11 |
| 100 | 4” | 85 | 122 | 4 | 1,80 | 11-0201-12 |
| 125 | 5″ | 92 | 150 | 2,28 | 16-0201-13* | |
| 150 | 6″ | 92 | 180 | 3,88 | 16-0201-14* |
*Upon request in grade EN 1.4571 only
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
