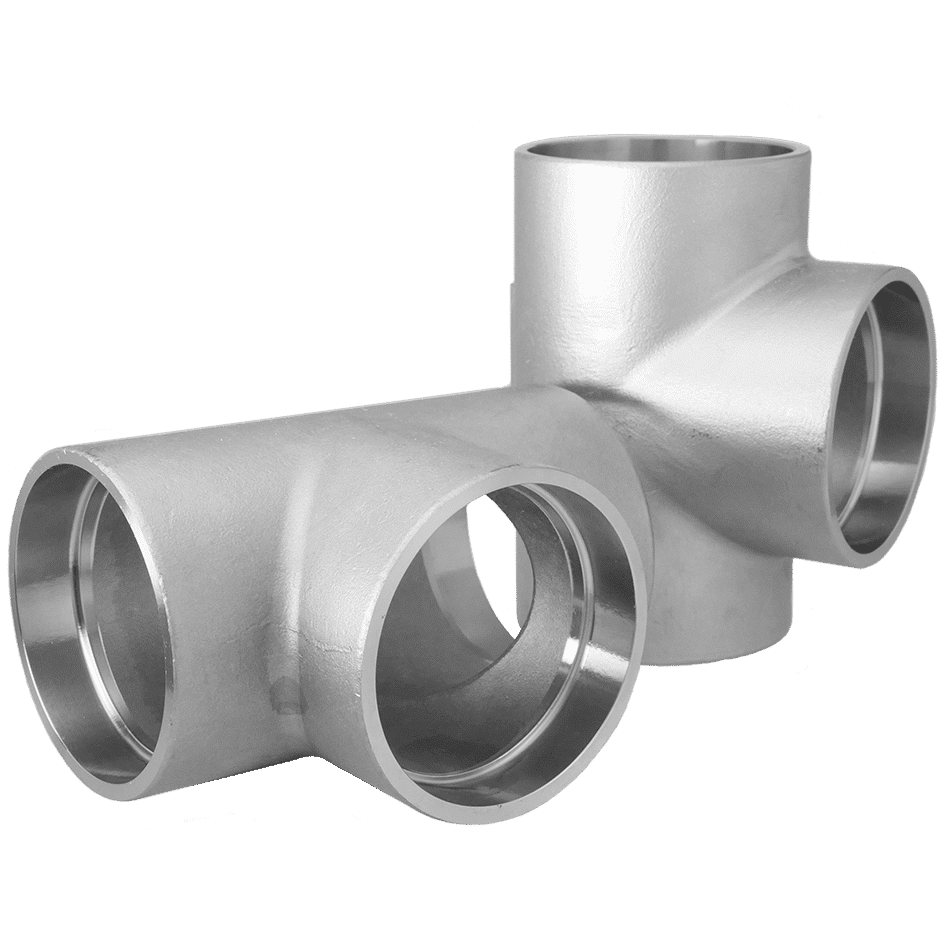

I-221 Tees socket welding
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4408

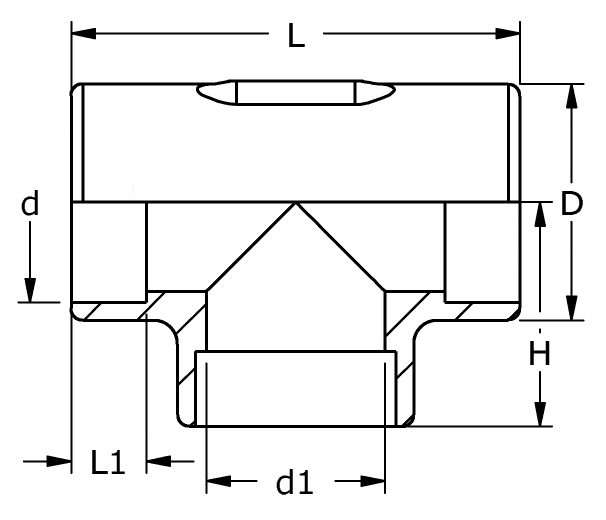

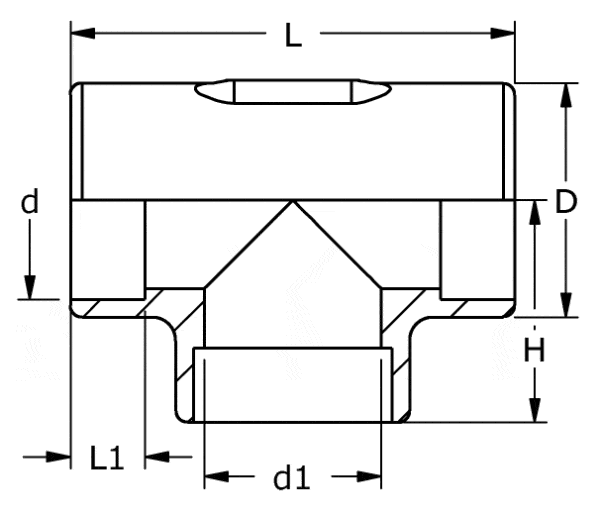

| Dim. | L mm |
L1 mm |
D mm |
d mm |
d1 mm |
H mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4408 |
|---|---|---|---|---|---|---|---|---|---|
| 17,0-17,2 | 50 | 10 | 21,6 | 17,4 | 15,2 | 25 | 10 | 0,08 | 12-0221-05 |
| 21,3 | 56 | 10 | 27 | 21,5 | 19 | 28 | 10 | 0,13 | 12-0221-07 |
| 26,9 | 67,5 | 12,7 | 33 | 27,2 | 24,4 | 34 | 10 | 0,21 | 12-0221-08 |
| 33,7 | 76 | 12,7 | 40 | 34 | 30,2 | 38 | 10 | 0,31 | 12-0221-10 |
| 42,4 | 90 | 12,7 | 51 | 42,7 | 38,7 | 45 | 6,4 | 0,62 | 12-0221-12 |
| 48,3 | 100 | 12,7 | 57 | 48,6 | 44,4 | 50 | 6,4 | 0,88 | 12-0221-14 |
| 60,3 | 116 | 12,7 | 68 | 60,5 | 56,3 | 58 | 6,4 | 1,18 | 12-0221-15 |
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
