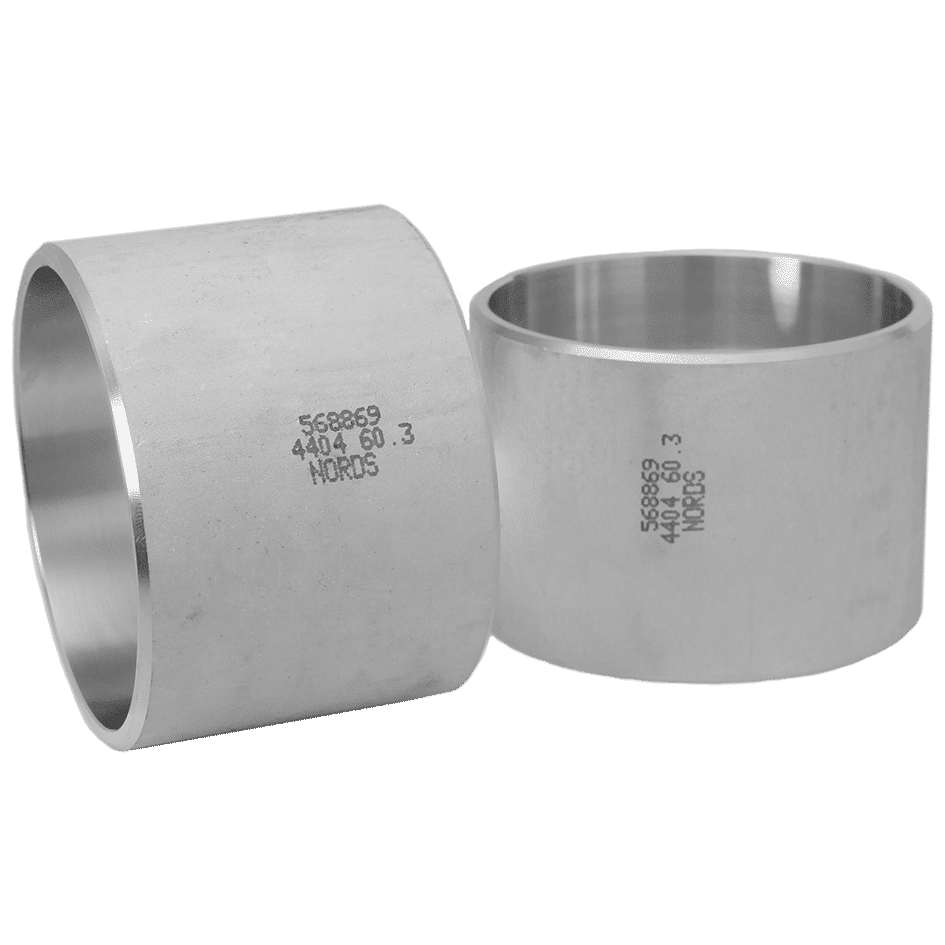

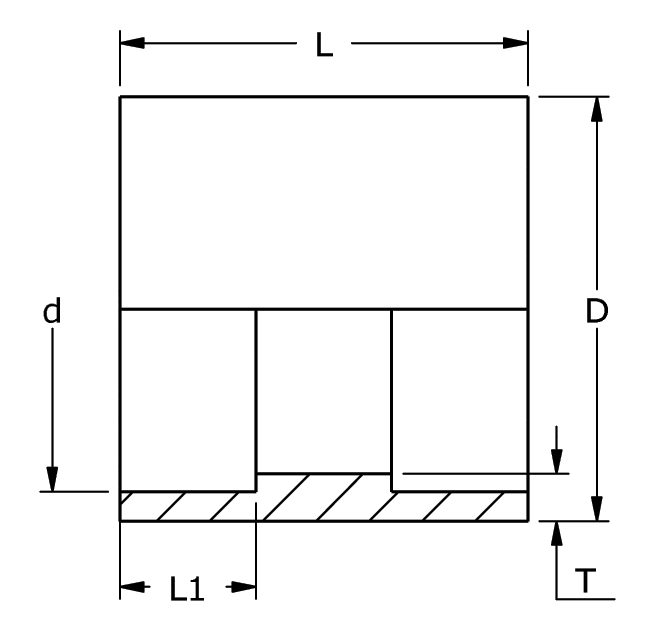

Dim. | L mm |
L1 mm |
D mm |
d mm |
T mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
---|---|---|---|---|---|---|---|---|
17,0-17,2 | 26 | 10 | 21,5 | 17,5 | 3,1 | 10 | 0,03 | 12-0201-05 |
21,3 | 30 | 10 | 26,5 | 21,6 | 3,8 | 10 | 0,05 | 12-0201-08 |
26,9 | 35 | 12,7 | 32 | 27,2 | 4,1 | 10 | 0,06 | 12-0201-09 |
33,7 | 38 | 12,7 | 40 | 34 | 4,4 | 10 | 0,12 | 12-0201-11 |
42,4 | 38 | 12,7 | 48,3 | 42,7 | 4,5 | 6,4 | 0,10 | 12-0201-13 |
48,3 | 38 | 12,7 | 54,5 | 48,8 | 4,7 | 6,4 | 0,20 | 12-0201-15 |
60,3 | 47 | 16 | 66,3 | 60,8 | 4,7 | 6,4 | 0,32 | 12-0201-16 |
Product categories
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
