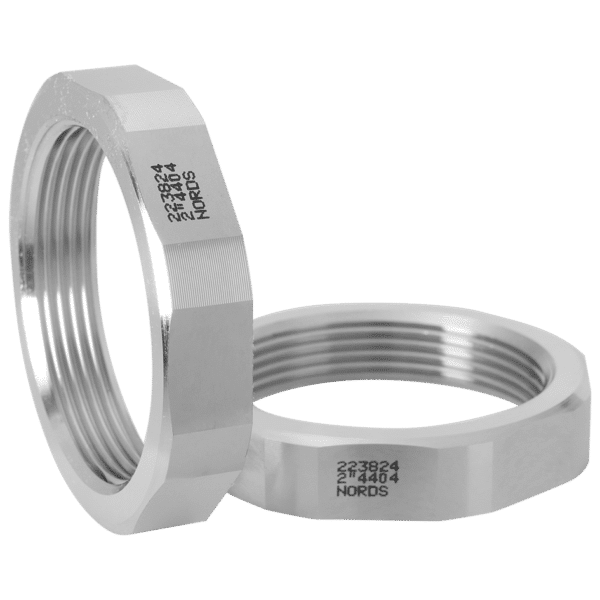

R-217 Hexagonal nuts
Inside parallel threads acc. to ISO 228-1 G
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades upon request *EN 1.4408

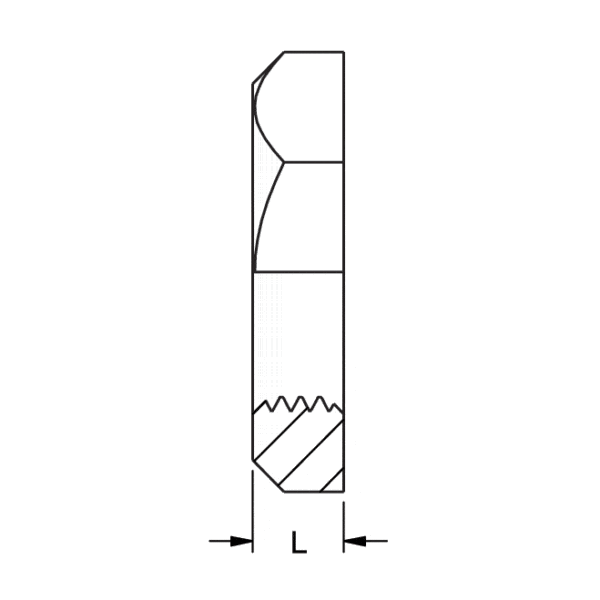

| DN | Dim. | L ISO 228/1 mm |
Width across flats mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
|---|---|---|---|---|---|---|
| 6 | 1/8” | 7 | 17 | 10 | 0,01 | 11-0217-01 |
| 8 | 1/4” | 8 | 22 | 10 | 0,02 | 11-0217-22* |
| 10 | 3/8” | 9 | 27 | 10 | 0,03 | 11-0217-23* |
| 15 | 1/2” | 9 | 32 | 10 | 0,04 | 11-0217-24* |
| 20 | 3/4” | 10 | 36 | 10 | 0,05 | 11-0217-25* |
| 25 | 1” | 11 | 46 | 10 | 0,08 | 11-0217-26* |
| 32 | 1 1/4” | 13 | 55 | 6,4 | 0,13 | 11-0217-07 |
| 40 | 1 1/2” | 13 | 60 | 6,4 | 0,13 | 11-0217-08 |
| 50 | 2” | 14 | 72 | 6,4 | 0,22 | 11-0217-09 |
| 65 | 2 1/2” | 16 | 95 | 4 | 0,4 | 11-0217-10 |
| 80 | 3” | 19 | 104 | 4 | 0,48 | 11-0217-11 |
* EN 1.4408, upon request also available in EN 1.4404
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
