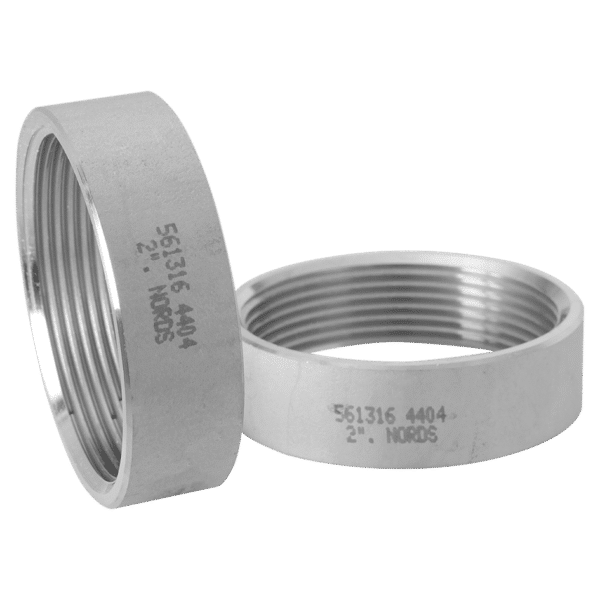

R-216 Round nuts
Inside parallel threads acc. to ISO 228-1 G
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades upon request

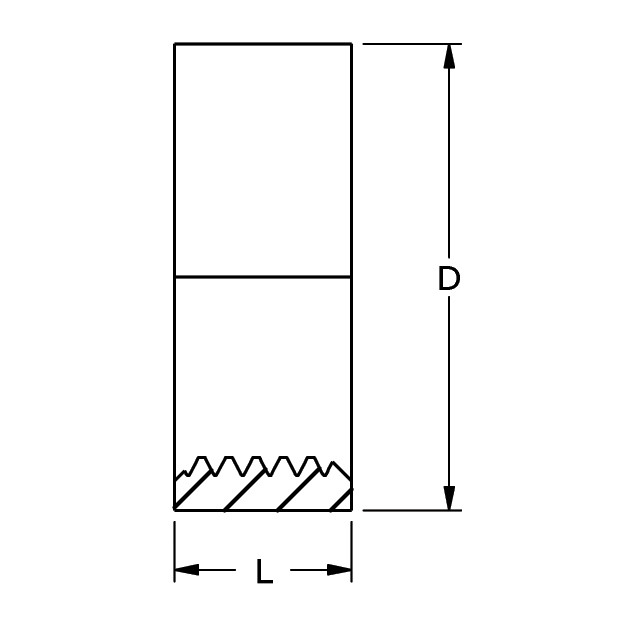

| DN | Dim. | L1 ISO 228/1 mm |
D mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
|---|---|---|---|---|---|---|
| 6 | 1/8” | 9 | 14 | 10 | 0,01 | 11-0216-01 |
| 8 | 1/4” | 10 | 18,5 | 10 | 0,02 | 11-0216-02 |
| 10 | 3/8” | 10 | 21,5 | 10 | 0,02 | 11-0216-03 |
| 15 | 1/2” | 12 | 26,5 | 10 | 0,03 | 11-0216-04 |
| 20 | 3/4” | 13 | 32,5 | 10 | 0,04 | 11-0216-05 |
| 25 | 1” | 15 | 40 | 10 | 0,05 | 11-0216-06 |
| 32 | 1 1/4” | 17 | 48,3 | 6,4 | 0,1 | 11-0216-07 |
| 40 | 1 1/2” | 18 | 54,5 | 6,4 | 0,11 | 11-0216-08 |
| 50 | 2” | 19 | 66,3 | 6,4 | 0,15 | 11-0216-09 |
| 65 | 2 1/2” | 23 | 82 | 4 | 0,26 | 11-0216-10 |
| 80 | 3” | 25 | 95 | 4 | 0,35 | 11-0216-11 |
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
