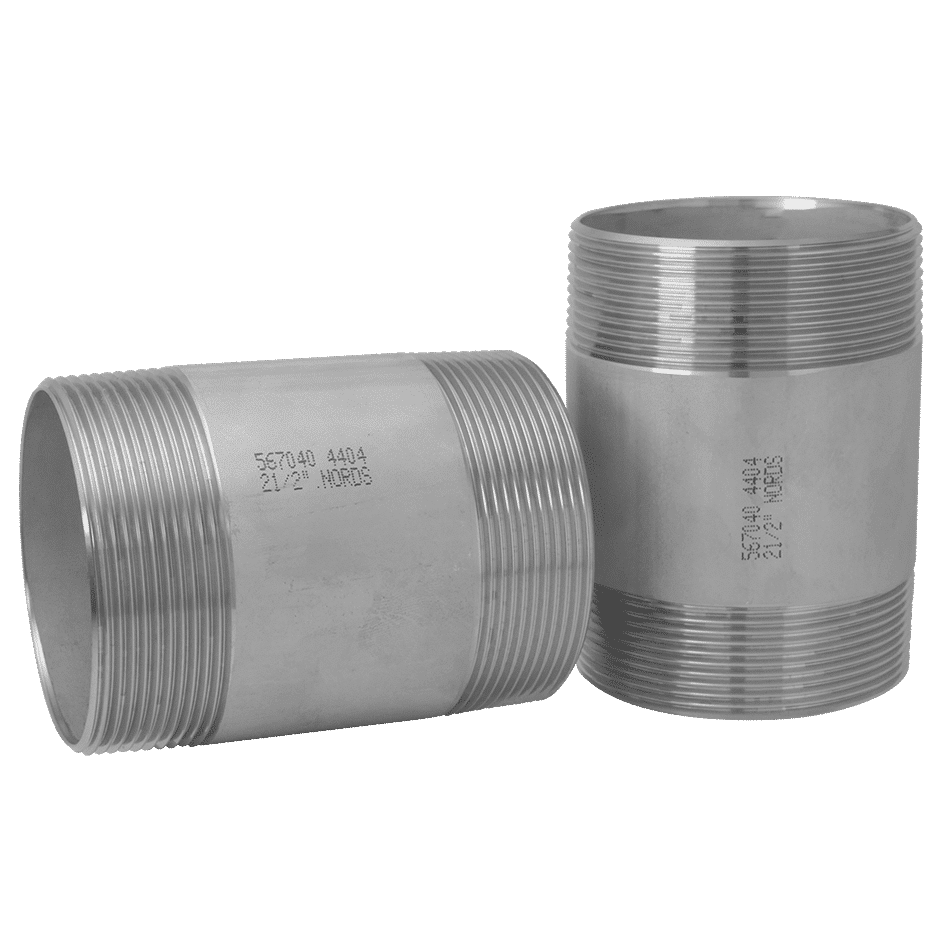

R-210 Barrel nipples
Outside taper threads acc. to ISO 7/1 / EN 10226 R
CNC-machined from welded tubes
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades such as EN 1.4307, EN 1.4432, EN 1.4571, EN 1.4462 (Duplex 2205), 1.4539 (904L), EN 1.4547 (S31254/SMO) and other lengths upon request
| DN | Dim. | L mm |
L1 ISO 7/1 R mm |
D mm |
T mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
|---|---|---|---|---|---|---|---|---|
| 6 | 1/8” | 40 | 6 | 10,2 | 2 | 10 | 0,02 | 11-0210-01 |
| 8 | 1/4” | 40 | 9 | 13,5 | 2,3 | 10 | 0,02 | 11-0210-02 |
| 10 | 3/8” | 40 | 9 | 17,2 | 2,3 | 10 | 0,03 | 11-0210-03 |
| 15 | 1/2” | 60 | 12 | 21,3 | 2,6 | 10 | 0,07 | 11-0210-04 |
| 20 | 3/4” | 60 | 13,5 | 26,9 | 2,6 | 10 | 0,07 | 11-0210-05 |
| 25 | 1” | 60 | 15 | 33,7 | 3,2 | 10 | 0,12 | 11-0210-06 |
| 32 | 1 1/4” | 80 | 17 | 42,4 | 3,2 | 6,4 | 0,21 | 11-0210-07 |
| 40 | 1 1/2” | 80 | 17 | 48,3 | 3,2 | 6,4 | 0,24 | 11-0210-08 |
| 50 | 2” | 100 | 22 | 60,3 | 3,6 | 6,4 | 0,42 | 11-0210-09 |
| 65 | 2 1/2” | 100 | 24 | 76,1 | 3,6 | 4 | 0,53 | 11-0210-10 |
| 80 | 3” | 120 | 27 | 88,9 | 4 | 4 | 0,76 | 11-0210-11 |
| 100 | 4” | 150 | 33 | 114,3 | 4 | 4 | 1,30 | 11-0210-12 |
