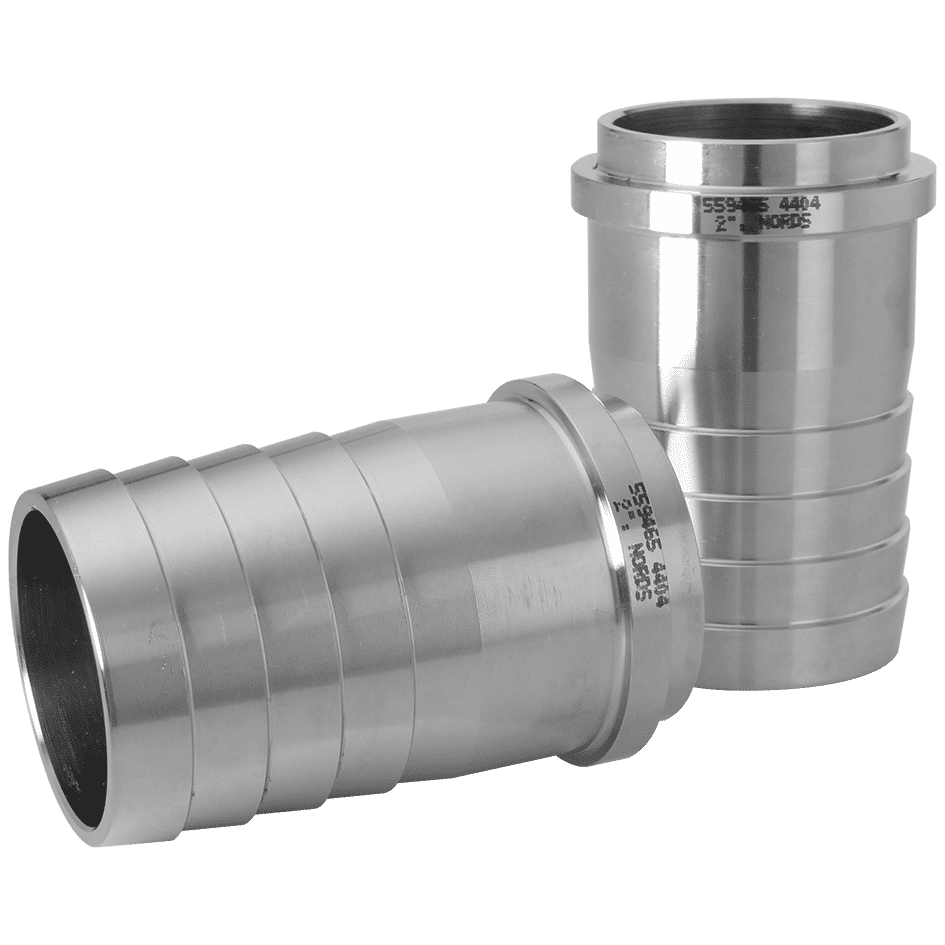

R-143 Hose nipples tap connedction

CNC-machined from welded tubes
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades upon request

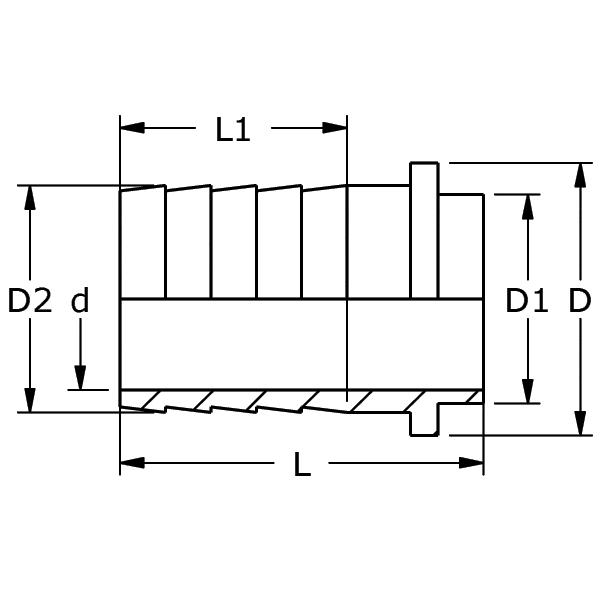

DN Dim. L
mm
L1
mm
D
mm
D1
mm
D2
mm
d
mm
Design
pressure
Mpa
Weight
kg/pce
Article code
EN 1.4404
8 1/4” 32 25 11 6 7,5 4,5 10 0,01 11-0143-02
10 3/8” 34 25 14 10 10,5 7 10 0,01 11-0143-03
15 1/2” 40 25 18 13 13,5 10 10 0,02 11-0143-04
20 3/4” 40 25 23,5 18,5 20 15,5 10 0,04 11-0143-05
25 1” 40 25 30 23 25 20 10 0,05 11-0143-06
32 1 1/4” 61 35 38 30 32 25 6,4 0,14 11-0143-07
40 1 1/2” 61 35 44 38 39 32 6,4 0,17 11-0143-08
50 2” 83 50 55 47 50 42 6,4 0,35 11-0143-09
