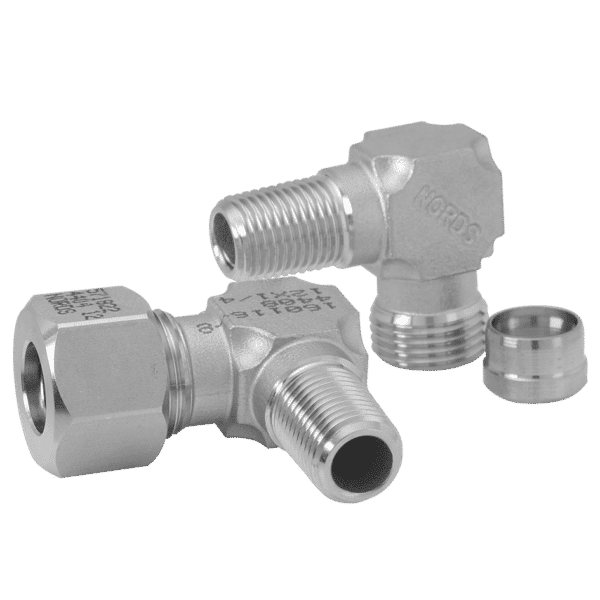

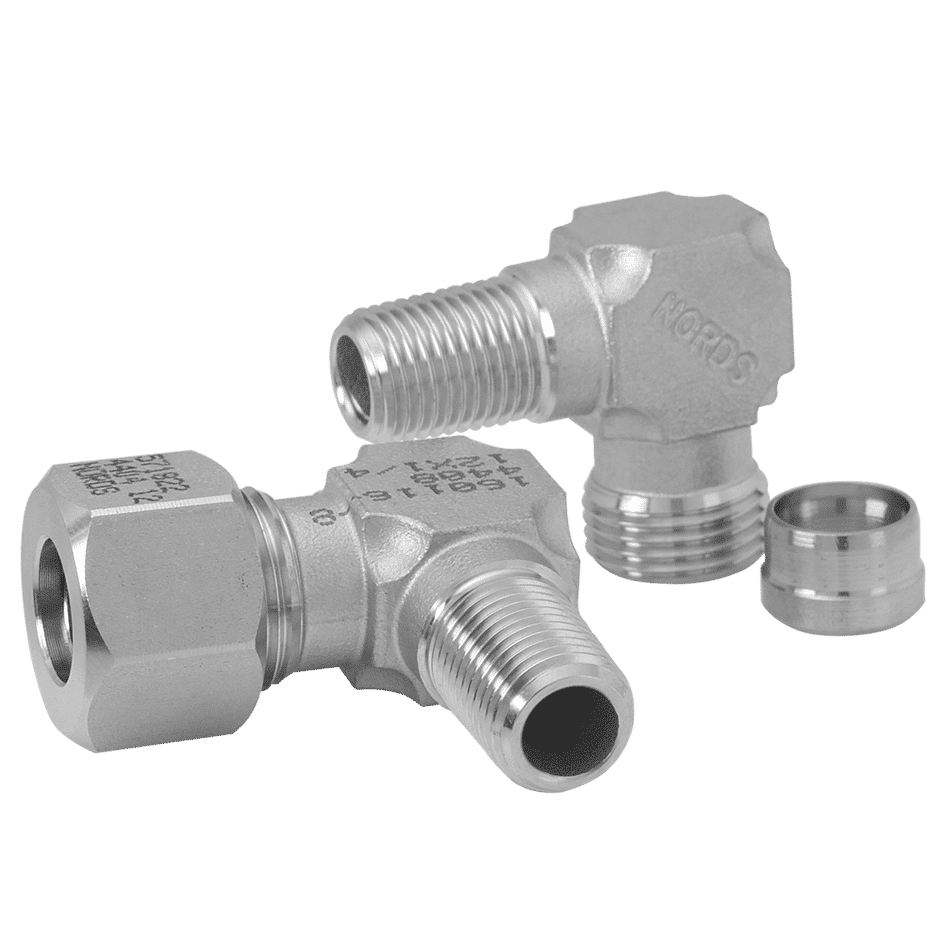

R-1325 Bite-ring couplings
Single ferrule
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4408
| Dim. | L mm |
L1 mm |
H mm |
L2 mm |
L3 ISO 7/1 R mm |
d mm |
d1 mm |
Width across flats mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4408 |
| 6 x 1/8” | 31 | 27 | 24 | 10,5 | 7,5 | 6,1 | 5 | 14 | 10 | 0,04 | 11-1325-01 |
| 6 x 1/4” | 31 | 27 | 24 | 10,5 | 11,5 | 6,1 | 5 | 14 | 10 | 0,04 | 11-1325-02 |
| 8 x 1/4” | 33,5 | 28,5 | 26 | 10 | 11,5 | 8,1 | 6 | 17 | 10 | 0,05 | 11-1325-03 |
| 8 x 3/8” | 34 | 30,5 | 25,5 | 10 | 11,5 | 8,1 | 6 | 19 | 10 | 0,08 | 11-1325-10 |
| 10 x 1/4” | 36 | 30,5 | 27,5 | 11 | 11,5 | 10,2 | 8 | 19 | 10 | 0,07 | 11-1325-04 |
| 10 x 3/8” | 36 | 30,5 | 27,5 | 11 | 11,5 | 10,2 | 8 | 19 | 10 | 0,07 | 11-1325-05 |
| 12 x 1/4” | 41,5 | 32,5 | 32 | 11 | 11,5 | 12,2 | 8 | 22 | 10 | 0,09 | 11-1325-06 |
| 12 x 3/8” | 41,5 | 32,5 | 32 | 11 | 11,5 | 12,2 | 10 | 22 | 10 | 0,09 | 11-1325-07 |
| 12 x 1/2” | 41,5 | 32,5 | 32 | 11 | 13,5 | 12,2 | 10 | 22 | 10 | 0,10 | 11-1325-08 |

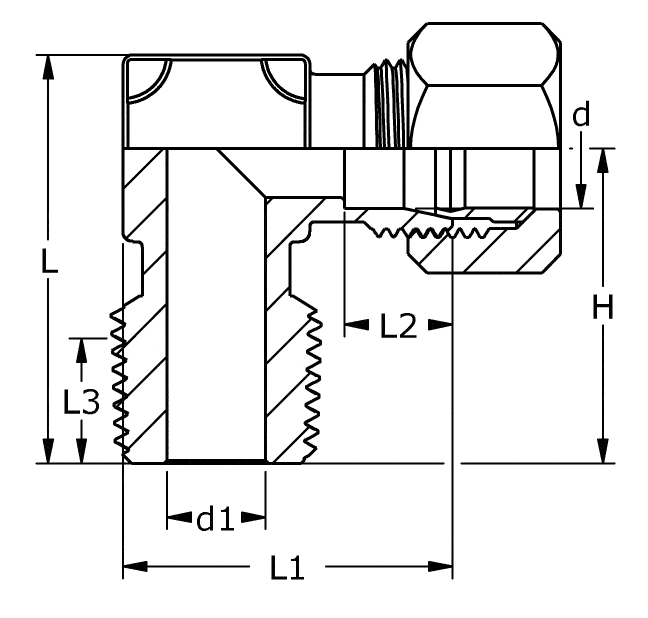

3D drawings
