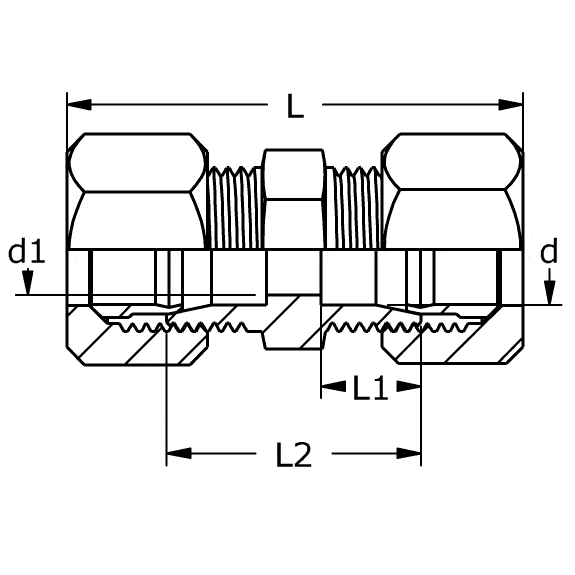

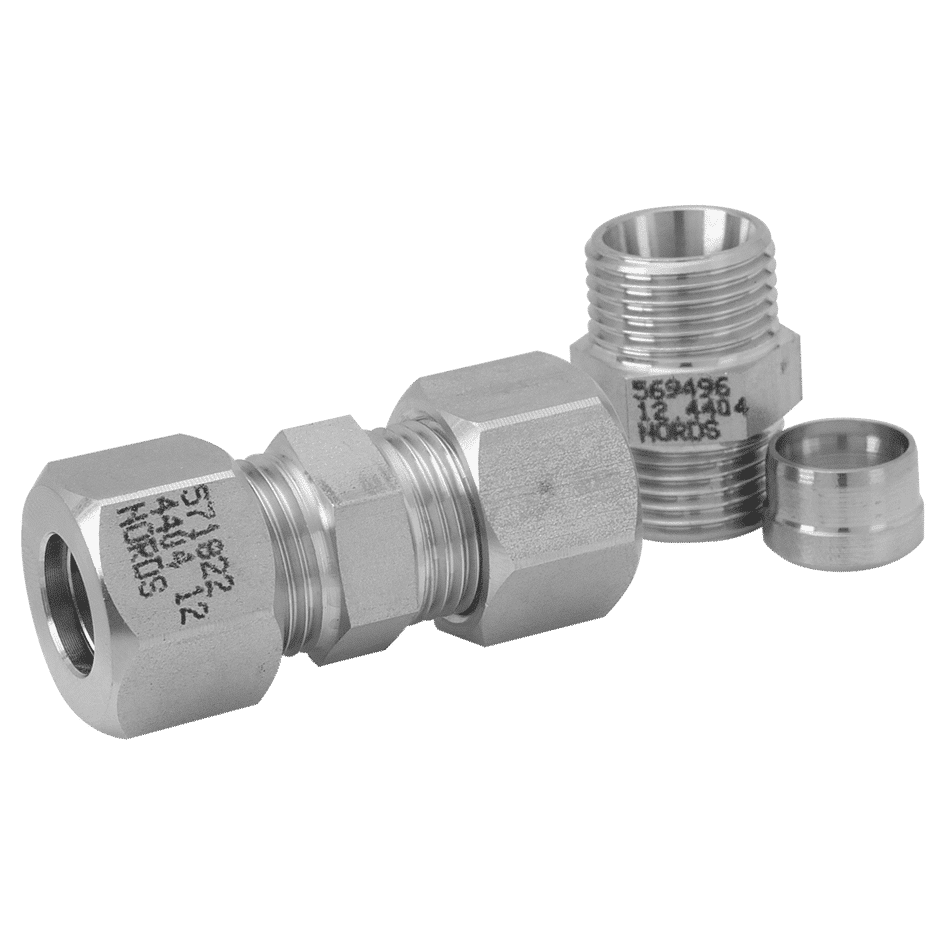

R-1321 Bite-ring couplings
Single ferrule
CNC-machined from bar
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404, other steel grades upon request
| Dim. mm |
L mm |
L1 mm |
L2 mm |
d mm |
d1 mm |
Width across flats mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
| 6 | 39 | 10,5 | 24 | 6,1 | 5 | 14 | 10 | 0,04 | 11-1321-02 |
