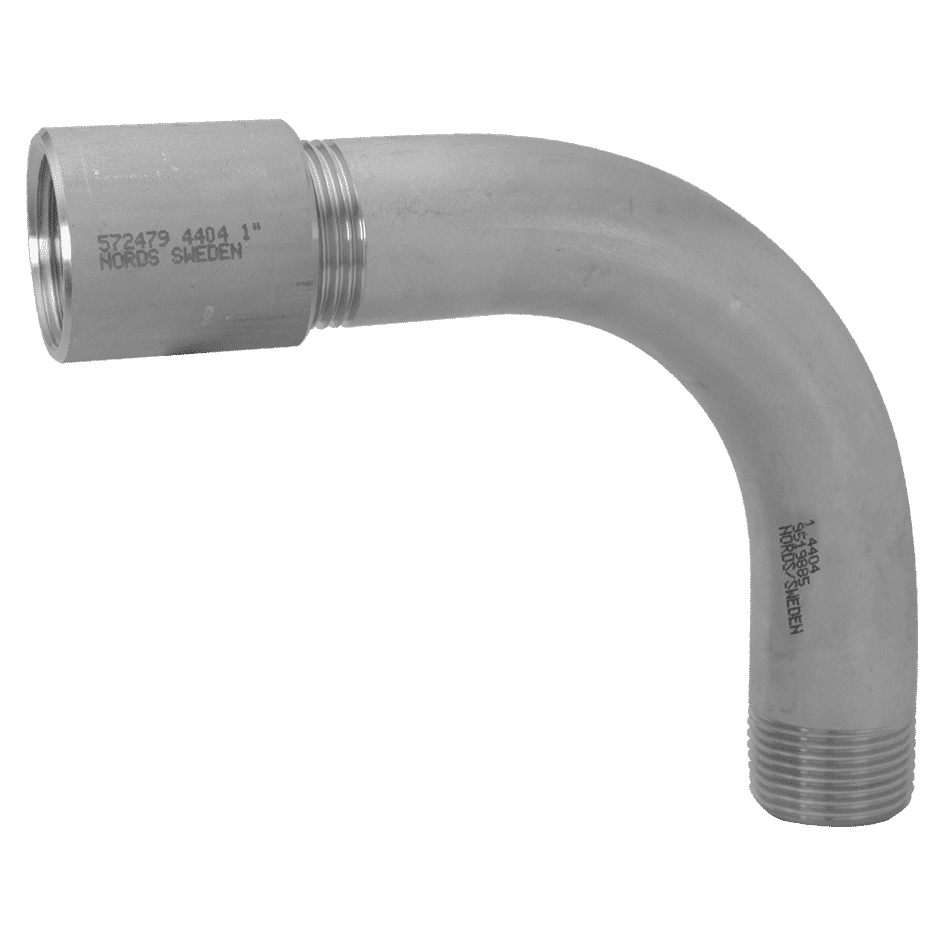

R-226 Bends 90°
Inside parallel threads acc. to ISO 228-1 G, outside taper threads acc. to ISO 7/1 / EN 10226 R
CNC-machined from welded tubes
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4404

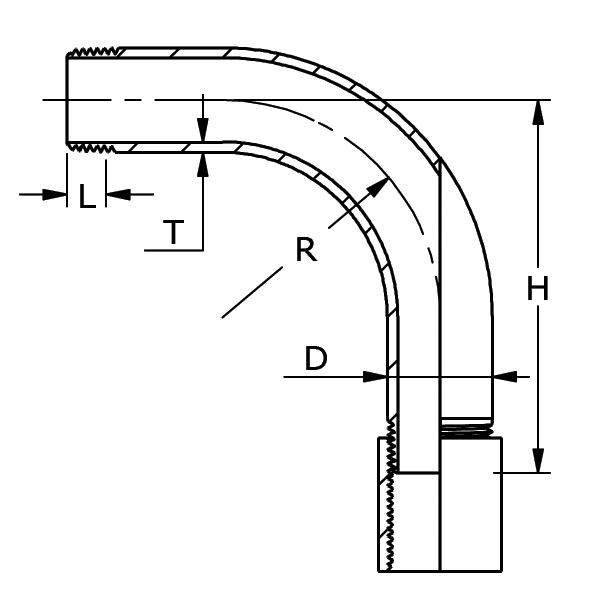

| DN | Dim. | H mm |
L ISO 7/1 R mm |
Design pressure Mpa |
Weight kg/pce |
Article code EN 1.4404 |
|---|---|---|---|---|---|---|
| 6 | 1/8” | 50 | 9 | 10 | 0,05 | 11-0226-01 |
| 8 | 1/4” | 60 | 11 | 10 | 0,10 | 11-0226-02 |
| 10 | 3/8” | 70 | 12 | 10 | 0,15 | 11-0226-03 |
| 15 | 1/2” | 80 | 15 | 10 | 0,23 | 11-0226-04 |
| 20 | 3/4” | 100 | 16 | 10 | 0,35 | 11-0226-05 |
| 25 | 1” | 120 | 19 | 10 | 0,61 | 11-0226-06 |
| 32 | 1 1/4” | 140 | 21 | 6,4 | 0,93 | 11-0226-07 |
| 40 | 1 1/2” | 160 | 21 | 6,4 | 1,18 | 11-0226-08 |
| 50 | 2” | 190 | 25 | 6,4 | 1,95 | 11-0226-09 |
| 65 | 2 1/2” | 240 | 30 | 4 | 3,27 | 11-0226-10 |
| 80 | 3” | 290 | 33 | 4 | 4,91 | 11-0226-11 |
Note! Also available without socket
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
