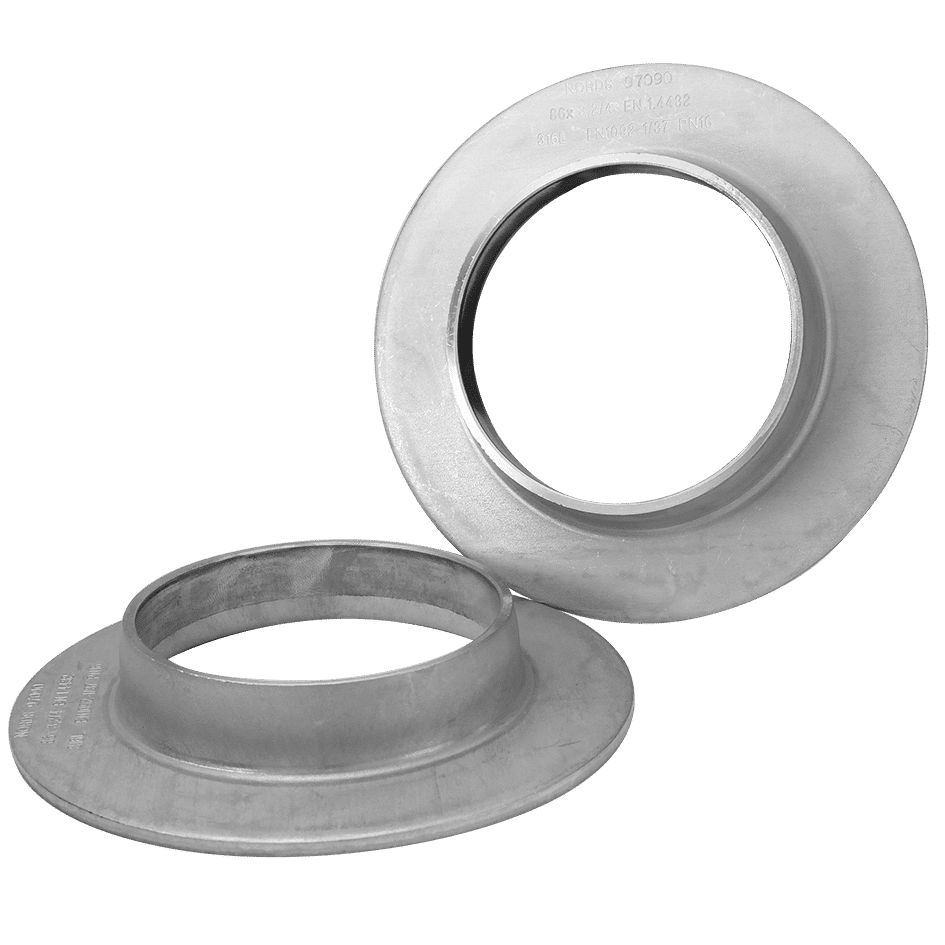

R-154 ISO Pressed collars Type 37
EN 1092-1 Type 37
Individual pressure calculated according to EN 13480-3
Stock standard EN 1.4432 and EN 1.4307, EN 1.4404 is partially stock standard, other steel grades such as EN 1.4462 (Duplex 2205), 1.4539 (904L) and EN 1.4547 (S31254/SMO), EN 4410 (Super Duplex), EN 1.4571 can be offered upon request

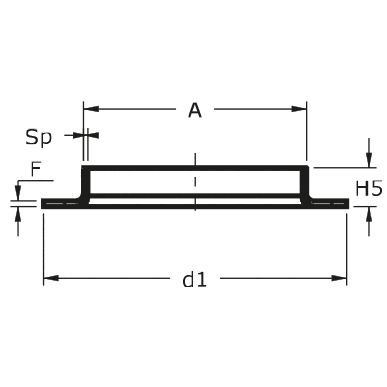

| DN |
Dim. A mm |
Sp mm |
F mm |
d1 mm |
H5 mm |
Weight kg/pce |
Design pressure BAR | Article code |
||
| EN 13480 | EN 1092-1/37 | |||||||||
| 10 | 17,2 | 2 | 2,5 | 40 | 7 | 0,02 | 16 | 16 | FCIXX01720 | |
| 15 | 21,3 | 2 | 2,5 | 45 | 7 | 0,03 | 16 | 16 | FCIXX02120 | |
| 21,3 | 2 | 3 | 45 | 7 | 0,04 | 16 | ||||
| 20 | 26,9 | 2 | 3 | 58 | 8 | 0,06 | 16 | 16 | FCIXX02620 | |
| 3 | 4 | 58 | 8 | 0,07 | 16 | FCIXX02630 | ||||
| 25 | 33,7 | 2 | 3 | 68 | 10 | 0,08 | 16 | 16 | FCIXX03320 | |
| 3,2 | 4 | 68 | 10 | 0,10 | 16 | FCIXX03330 | ||||
| 32 | 42,4 | 2 | 3 | 78 | 12 | 0,10 | 16 | 16 | FCIXX04220 | |
| 3,2 | 4 | 78 | 12 | 0,13 | 16 | FCIXX04230 | ||||
| 40 | 48,3 | 2 | 3 | 88 | 15 | 0,13 | 16 | 16 | FCIXX04820 | |
| 3,2 | 4 | 88 | 15 | 0,17 | 16 | FCIXX04830 | ||||
| 50 | 60,3 | 2 | 3 | 102 | 20 | 0,18 | 16 | 16 | FCIXX06020 | |
| 3,2 | 4 | 102 | 20 | 0,23 | 16 | FCIXX06030 | ||||
| 65 | 76,1 | 2 | 3 | 122 | 20 | 0,24 | 16 | 16 | FCIXX07620 | |
| 3,2 | 4 | 122 | 20 | 0,32 | 16 | FCIXX07630 | ||||
| 80 | 88,9 | 2 | 3 | 138 | 25 | 0,31 | 16 | 16 | FCIXX08820 | |
| 3,2 | 4 | 138 | 25 | 0,42 | 16 | FCIXX08830 | ||||
| 100 | 114,3 | 2 | 2,5 | 158 | 25 | 0,31 | 10 | FCIXX11420 | ||
| 2,6 | 3 | 158 | 25 | 0,37 | 10 | FCIXX11426 | ||||
| 3,2 | 4 | 158 | 25 | 0,49 | 16 | 16 | FCIXX11430 | |||
| 125 | 139,7 | 2 | 2,5 | 188 | 25 | 0,39 | 10 | FCIXX13920 | ||
| 2,6 | 3 | 188 | 25 | 0,48 | 10 | FCIXX13926 | ||||
| 3,2 | 4 | 188 | 25 | 0,64 | 16 | 16 | FCIXX13930 | |||
| 150 | 168,3 | 2 | 2,5 | 212 | 25 | 0,47 | 10 | FCIXX16820 | ||
| 2,6 | 3 | 212 | 25 | 0,56 | 10 | FCIXX16826 | ||||
| 3,2 | 4 | 212 | 25 | 0,73 | 16 | 16 | FCIXX16835 | |||
| 3,2 | 5* | 212 | 25 | 0,93 | 16 | FCIXX16840 | ||||
| 200 | 219,1 | 2 | 2,5 | 268 | 30 | 0,67 | 6 | FCIXX21920 | ||
| 2,6 | 3 | 268 | 30 | 0,81 | 10 | FCIXX21926 | ||||
| 3,2 | 4 | 268 | 30 | 1,06 | 16 | FCIXX21930 | ||||
| 3,2 | 5* | 268 | 30 | 1,33 | 16 | 10 | FCIXX21940 | |||
| 250 | 273 | 3 | 3 | 320 | 31 | 1,18 | 6 | FDIXX27330 | ||
| 4 | 4 | 320 | 31 | 1,58 | 10 | FDIXX27340 | ||||
| 300 | 323,9 | 3 | 3 | 370 | 35 | 1,50 | 4 | FDIXX32330 | ||
| 4 | 4 | 370 | 35 | 1,90 | 10 | FDIXX32340 | ||||
| 350 | 355,6 | 4 | 4* | 430 | 45 | 3,10 | 6 | |||
For larger sizes see metric dimensions
* No stock standard
3D drawings
You can download the drawings for this product for free by:
- In the table under Dimension table, find out which dimension you are interested in and in the drop-down list below select the part number for that dimension.
- Click Download drawing.
- Go to the shopping cart and log in or create an account if you have not registered.
- Proceed by clicking Free Download.
- Once your order is complete, you can download the selected drawings and you can also access them under Downloads in My Account >.
If you are interested in downloading the entire library of drawings, please contact us.
